BOSS RC-3

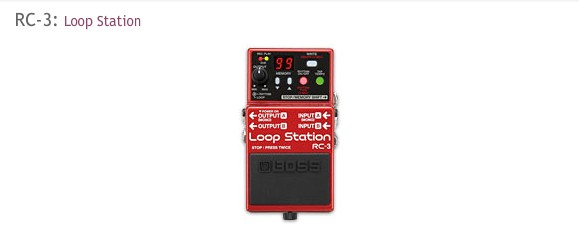

RC-3: Loop Station

Three Hours of Stereo Recording in a Stompbox

The RC-3 is powerfully equipped yet conveniently housed in a compact pedal. Enjoy up to three hours of stereo recording time, storage for 99 loops, a “real drums” rhythm guide, and USB 2.0 compatibility all in a small BOSS stompbox.

Compact and powerful stereo stompbox looper
Massive internal memory with up to three hours of stereo recording time
99 onboard memories for storing loops
USB 2.0 port allows you to connect to a PC and import/export WAV audio
Rhythm guide with real drums
Runs on a single 9-volt battery or optional AC power supply

Marathon Looping

The RC-3 provides three hours of stereo recording capacity direct to internal memory. Now you can record long phrases without worrying about memory. 99 memory locations let you save as many phrases or ideas as you can create. Guitarists who want to incorporate external stereo effects devices will appreciate the true stereo I/O on the RC-3.

Auto Record

The Auto Recording feature starts recording the moment you begin playing your guitar, or as soon as you start a connected audio player. Count-In mode gives you one-bar of rhythm before recording starts. You can Undo/Redo as you go. The sky’s the limit with three hours of recording time!

Rhythm Guide

To keep your loops tight and in time, you can play along with one of the basic rhythm patterns in the RC-3’s onboard library as you record. Ten types of rhythm types are provided, including Rock, Pop, Funk, Shuffle, R&B, and Latin. A dedicated knob lets you adjust the volume of the rhythm and you can set the tempo via tap tempo. You can also specify the time signature. When you save a phrase, the rhythm type and time signature will also be saved.

USB Connectivity

You can connect the RC-3 to your computer via a standard USB cable, and back up your RC-3 recordings to your computer for safekeeping. You can also load WAV files from your computer directly into the RC-3. The RC-3 accepts 16-bit/44.1kHz WAV files of up to 1.7GB in size.

AUX Input

In addition to recording your guitar or bass performances and turning them into playable loops, you can also record other external stereo audio sources via the RC-3’s AUX IN. Sound from a digital-audio player connected to the AUX input, for example, can easily be recorded and made into a loop.

Nominal Input Level

INPUT: -20 dBu AUX IN: -10 dBu

Input Impedance

INPUT: 1 M ohm AUX IN: 22 k ohms

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approximately 3 hours Maximum Phrase Memory: 99 phrases Number of tracks: 1 Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Rhythm Type

Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion

USB Interface

Hi-Speed USB mass storage device class

Controls

Pedal switch LOOP OUTPUT knob RHYTHM OUTPUT knob DOWN button UP button WRITE button RHYTHM ON/OFF button TAP TEMPO button

Indicators

REC, PLAY (DUB) indicator

Display

7 segments, 2 characters (LED)

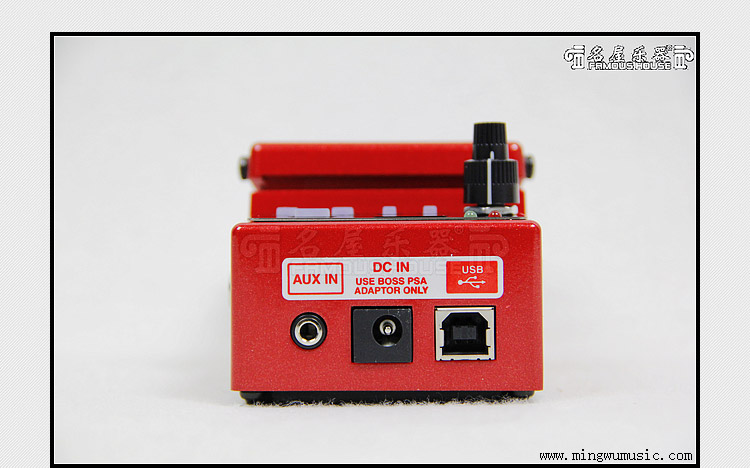

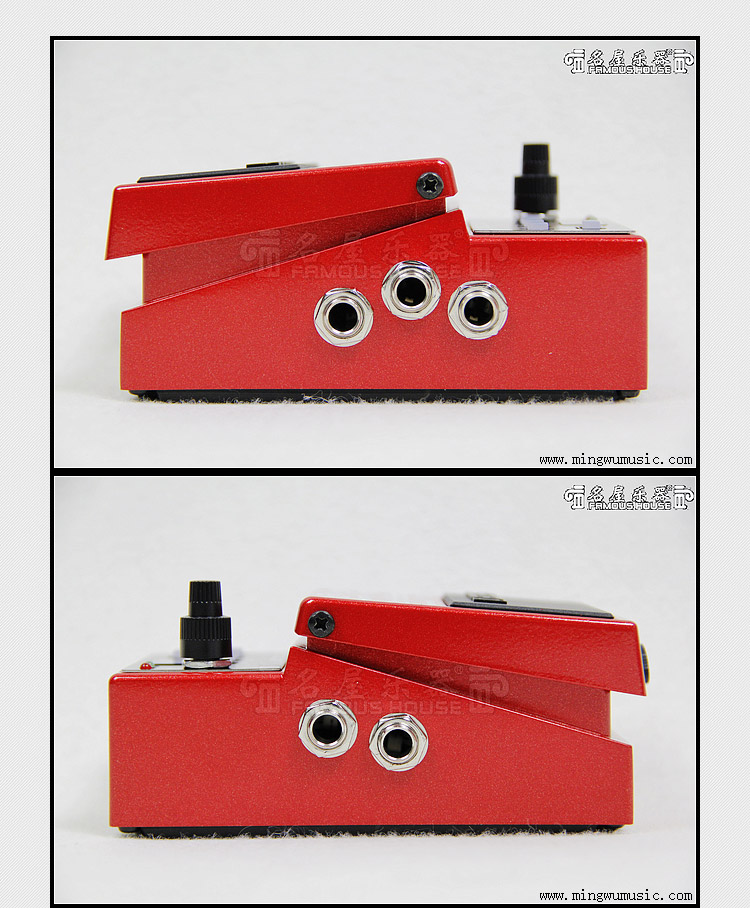

Connectors

INPUT A Jack: 1/4" phone type INPUT B Jack: 1/4" phone type AUX IN Jack: Stereo miniature phone type OUTPUT A Jack: 1/4" phone type OUTPUT B Jack: 1/4" phone type STOP/MEMORY SHIFT Jack: 1/4" TRS phone type USB Connector DC IN Jack (DC 9 V)

Power Supply

DC 9 V: Alkaline battery (9 V, 6LR61) AC Adaptor (PSA series: sold separately) * Rechargeable Ni-MH batteries cannot be used.

Current Draw

70 mA (DC 9 V)

Expected battery life under continuous use

Alkaline battery (9 V, 6LR61): Approx. 3 hours These figures will vary depending on the actual conditions of use.

Included Accessories

Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61): already installed in unit

Options (sold separately)

AC Adaptor (PSA series) Footswitch (FS-5U, FS-6)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-6/16 inches

Weight

450 g
0 lbs. 16 oz.

Weight including battery
0 dBu = 0.775 Vrms
The battery that was supplied with the unit is for temporary use, intended primarily for testing the unit's operation. We suggest replacing this with an alkaline dry cell.
