当前位置: 首页 > 效果器 > 单块效果器 > Visual Sound 1 spot Combo 效果器1托8电源

Visual Sound 1 spot Combo 效果器1托8电源

Visual Sound 1 spot Combo 效果器1托8电源
  • Visual Sound 1 spot Combo 效果器1托8电源
  • Visual Sound 1 spot Combo 效果器1托8电源
产品品牌 Visual Sound
运输重量 8.000千克
点击数 2467
库存情况 现货供应
Visual Sound ()
名屋价格:¥290元

旺旺在线咨询:

黄奥 东辽 张伊

添加以下微信,以獲得更多産品信息:

黄奥:
huangaohuangao24

东辽:
13548074419

伊哥哥:
yigege0416

音色视听

请点击视听列表:

商品信息

ABOUT VISUAL SOUND

BOB WEIL – FOUNDER, INVENTOR, AND PRESIDENT OF VISUAL SOUND

No, he doesn’t look like a mad scientist… but neither did Dr. Jekyll for that matter! But truth be told, Bob Weil, the creator and mastermind behind Visual Sound and its products, is just that… a Mad Scientist!

So what possesses someone to start a guitar products company in the first place? Well, it all goes back to November of 1988. “I needed a volume pedal, so I went out and bought an Ernie Ball mono volume pedal. After a short time I became frustrated with it. The volume taper was too abrupt, and more importantly, it didn’t have a visual reference so I could see where I was at.” After shopping for what he certainly thought existed at the time, to Bob’s amazement there was no such thing. So what did he do? Well, like any good inventor, he did the next best thing…created one.

“I could see my Ernie Ball pedal only had a pot and a string, so obviously the volume part of the pedal was easy.” But what about making an LED scale to go with it? “Well, I had one small handicap… I didn’t know ANYTHING about engineering. Heck, I didn’t even have an erector set when I was a kid! I was working in sales and marketing with a degree in Business Administration. That’s great for business, but doesn’t do much if you’re trying to design a product that nobody’s ever even tried to make. I started hanging out at libraries reading books on basic electronics. I also called a lot of engineers at semiconductor companies and asked all sorts of stupid questions. Eventually, over a period of years, I figured out how to make a “visual” volume pedal with a 10 LED scale.”

Over time Bob taught himself electronics, mechanical engineering, and patent law. And from what started as a wood block prototype, Bob’s original vision began to take shape. “I made a couple of prototypes and showed them around and eventually certain musician friends of mine wanted one of their own. So, I patented the whole “Visual” concept for pedals (another learning curve) and in November 1994, I jumped into business with one product… the Visual Volume™.”

Like any startup company, Visual Sound had its share of ups and downs trying to find that one thing that makes it all work… “If there was a mistake to be made, I probably made it. Unfortunately, volume pedals simply don’t sell as fast as effects pedals do. So I tried a few different test-market productions of other pedals such as: Visual Metal, Visual Blues, and the Visual Wah/Volume. All had less-than-impressive results.” But it wouldn’t be long before Bob created the pedal of his dreams… the classic Jekyll & Hyde™. This would be the pedal that would take things to the next level… you might say it put the “pedal to the metal”. “It wasn’t ‘Visual”, Bob said, “but it was exactly what I had been wanting as a guitar player for years.”



But the biggest challenge was yet to come…

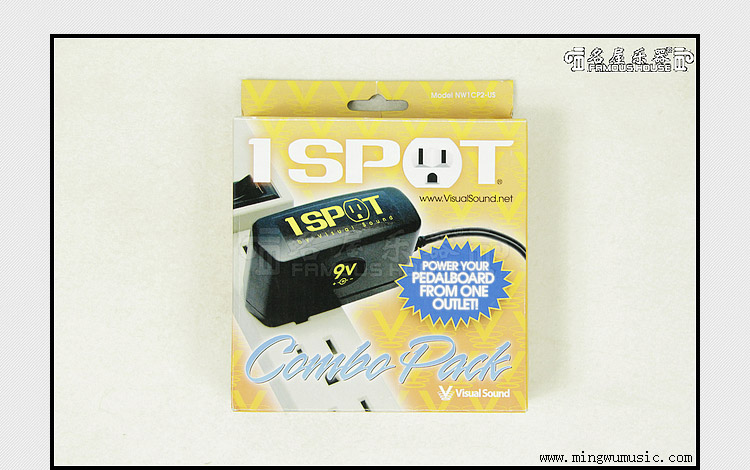

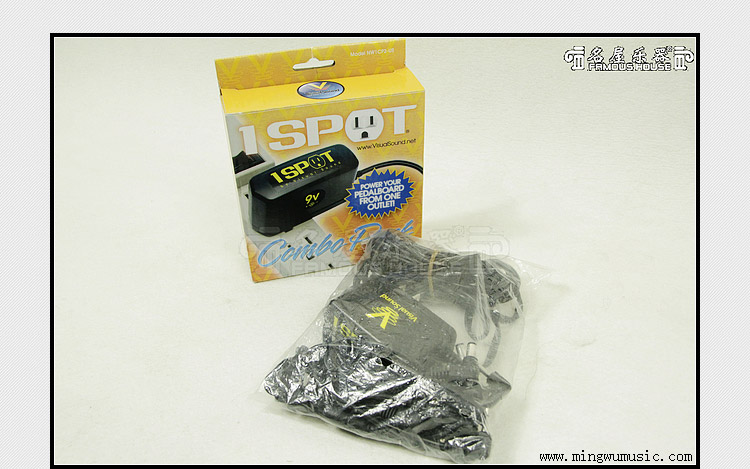

Visual Sound 1 spot Combo

 Visual Sound 1 SPOT效果器专用电源已经成为行业标准之一,很多效果器的官方说明中都推荐1 SPOT作为他们产品的配套电源之一。


*它可以自动适应100V-240V的输出电压,全世界适用,无需任何外接变压器。

*输出电压9V,最大输出电流1700mA

*可以接20个普通单块效果器

*适用90%以上的单块效果器使用,比如Boss PSA, Boss ACA, Danelectro DA-1, DOD PS-200R, Dunlop ECB-03, Ibanez AC-109, Korg A30950, Morley 9V, Zoom AD-0006.等等。

*线长3M,可外接各种规格的电源插头。

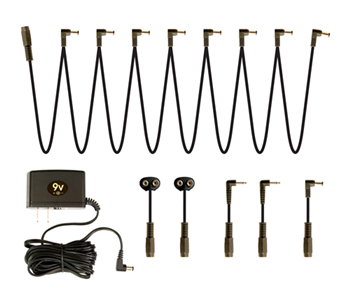

附带配件:

1、一根Multi-Plug 8 Cable (MC8):  1拖8转换连接线,可以提供8块效果器同时使用

2、两个3.5mm (1/8") Converter (C35):  针头插头,适用于EH、RAT等效果器


3、两个Battery Clip Converter (CBAT): 可以连接效果器上的电池扣

4、一个L6 Converter (CL6):适用于Line6 modeling 系列和Digitech RP


如何确认你的效果器可以使用1 SPOT供电:

1、你的效果器是否是直流(DC)供电,如果是交流(AC)供电,那么1 SPOT不能被使用。

2、你的效果器是否是9V标准?如果是12V、15V、24V等其他规格,那么1 SPOT不能被使用。

3、你的效果器电源极性是否是“外正内负”?大部分单块效果器是这样的规格,少部分是相反的,比如部分老式的FUZZ效果器,EH的一些效果器等,如果你的效果器不是这样的极性,1 SPOT不能直接使用,需要另外配合反极性的转接线来使用,同时不同极性的效果器,不能够同时由一个1 SPOT供电。

4、你的效果器或者所有效果器的电流总和超过1700mA(毫安),那么1 SPOT会带不动。一般而言,绝大部分的效果器电流要求都不会很大,大约是几个毫安到几百个毫安,极少数有超过1000毫安的。只要你的效果器对于电流的要求小于或等于1700毫安,都是可以带的动的。

5、如果你看不懂以上说明,请翻出你的初中物理学课本,或者上网搜索初中物理学相关章节,重新学习一下最基本的物理生活常识。


可以使用的效果器列表:

注意:由于各个厂家可能会对其产品进行改版和升级,因此我们不保证以下列表中的效果器的任何版本型号都一定可以由1 SPOT供电,请在购买和使用前查看你的效果器所需要的电源规格。

Akai – All pedals
Aphex – All pedals
Arion – All pedals
Austone – All pedals
Boss – All pedals
Barber – All pedals
Carl Martin (all models without AC cord)
Casio Keyboards
Danelectro – All pedals
Demeter Tremulator – C35
Digitech
X series pedals
RP50, BP50, BP80
RP100, BP100 – CL6
RP200 and higher – not compatible
DOD – All pedals (older models require C35)
Dunlop –
Crybaby Wahs
Rotovibe
Uni-Vibe Stereo Chorus
EBS – All pedals
Electro-Harmonix –
Big Muff – C35 (USA), CBAT (Russian)
Bass Balls – C35
Holy Grail – C35
Small Clone – C35
Small Stone – C35
Holier Grail, Frequency Analyzer, MicroSynth, Q-Tron, Tube pedals – not compatible
Expandora
Frantone – All pedals (except Glacier); for pre-2002 models, use C35
Fulltone – All pedals (except 69, Soul Bender, Octafuzz – these require CYR on a separate 1 SPOT from other
“normal” pedals.)
Guyatone – All pedals
Ibanez – All pedals (some older models require C35)
Jacques – All pedals C35
Line 6 - POD – not compatible
Modeling Pedals – CL6
Tone Core Pedals – Yes, but not recommended for more than one Tone Core plus other brands of pedals
Marshall – All pedals
Maxon – All pedals
Moogerfooger – All pedals - CYR
Morley – All pedals
MXR – Auto Q
EQ – not compatible
Dime Distortion – not compatible
Doubleshot Distortion – not compatible
All single effects (new)
All single effects (old) – C35
Nobels – All pedals
RAT (all models C35)
Rocktron – All pedals except Silver Dragon
Roger Mayer (all models; some require CBAT)
Seymore Duncan Pickup Booster
T-Rex – All pedals (except AC cord models)
Tubeworks – AC cord included
Voodoo Lab – All pedals
Yamaha – Keyboards, samplers, drum machines – CYR
Zoom – All pedals
ZVEX – All pedals CBAT


参数配置

实物图片
